NEW PRODUCT FOR 2022 - Volume discounts will automatically be applied at Checkout.

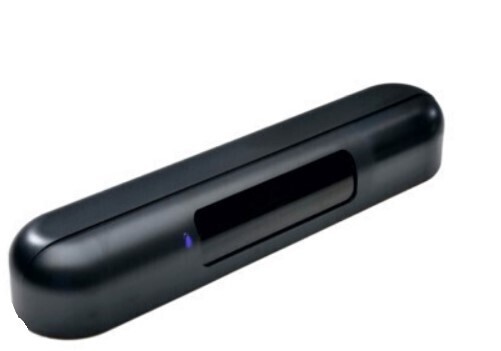

MS SEDCO, IN PARTNERSHIP WITH HOTRON LTD. PRESENTS THE SSR-3F OVERHEAD MOTION & PRESENCE SENSOR FOR AUTOMATIC SLIDING DOORS.

FEATURES & BENEFITS

• Exceeds ANSI A156.10 Requirements For Motion & Presence Detection
• Microwave & Active Infrared Technology
• Presence Monitoring Capable
• 12/24 Volts AC/DC Power Input
• Motion Detection Zone Approximation At 7’ Mounting Height: 13’ Wide x 8’ Out From Face Of The Door
• Three Rows Of Infrared – 32 Spots Of Detection
• Row 1 Infrared Can Extend Across Threshold
• 2 Distinct Outputs: Motion & Presence
• Presence Re-Learn Time: 2 Sec. (Service), 30 Sec., 60 Sec., Infinity
• N.O. or N.C. Output Selection
• 15˚ to 51˚ Microwave Tilt Adjustment
• Bi-Directional & Uni-Directional Motion Detection
• Various LED Colors And Flash Patterns To Indicate:
  • Motion Detection
  • Presence Detection
  • Doorway “Learning”
  • Infrared Reflectivity
  • Incorrect Wiring
  • Monitoring Status
  • Internal Error
• Cable and Mounting Hardware Included
